Noritsu S-3 scanner LVDS board

[Balázsovics]

Hey

I have not been able to get an LVDS connection between the scanner and the printer, i have tried multiple cables, cleaned connectors

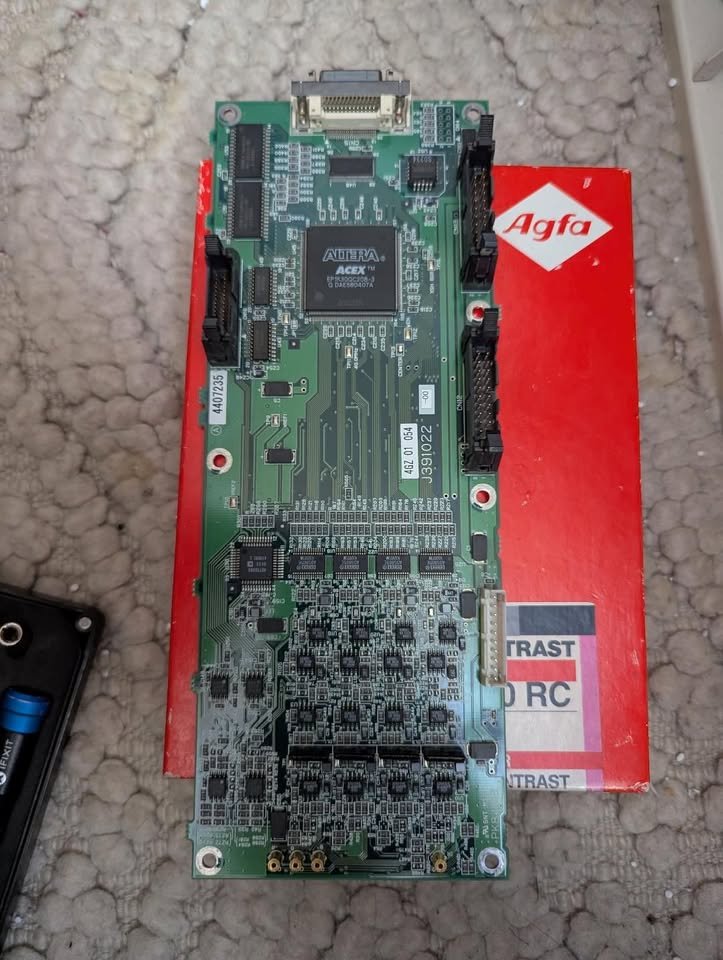

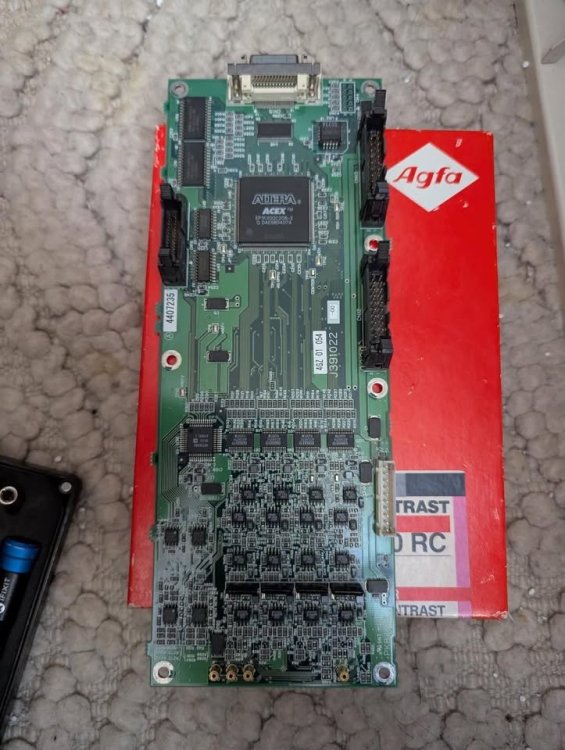

I have a spare J391022-00
My question is that can i swap in the spare one or that board contains calibration data?

[Dave S]

20 minutes ago, Balázsovics said:

Hey

I have not been able to get an LVDS connection between the scanner and the printer, i have tried multiple cables, cleaned connectors
I have a spare J391022-00
My question is that can i swap in the spare one or that board contains calibration data?

This board doesn't contain any data, so can be swapped between different S3 scanners.

[Balázsovics]

Just checked my notes on the spare board and it's from an S-2. The part number and the revision is exactly the same

18 hours ago, Dave S said:

This board doesn't contain any data, so can be swapped between different S3 scanners.
